Short answer: the Sunray Sedona (HL100K) is a compact 1-person infrared sauna, roomy enough for two people who don't mind sitting close, built in solid Canadian red cedar. It has five carbon-nano far infrared heaters (1,290 watts), keypads inside and out, chromotherapy, Bluetooth, a built-in backrest, a ceiling vent and an oxygen ionizer, in a footprint of about 36 by 42 inches. It runs on 120V, but Sunray's own data sheet lists both a 15A circuit and a 20A dedicated circuit, so confirm the circuit before you buy. Choose it if you want red cedar in a small space; if a published EMF rating or a lower price matters more, look at the Dynamic Avila.

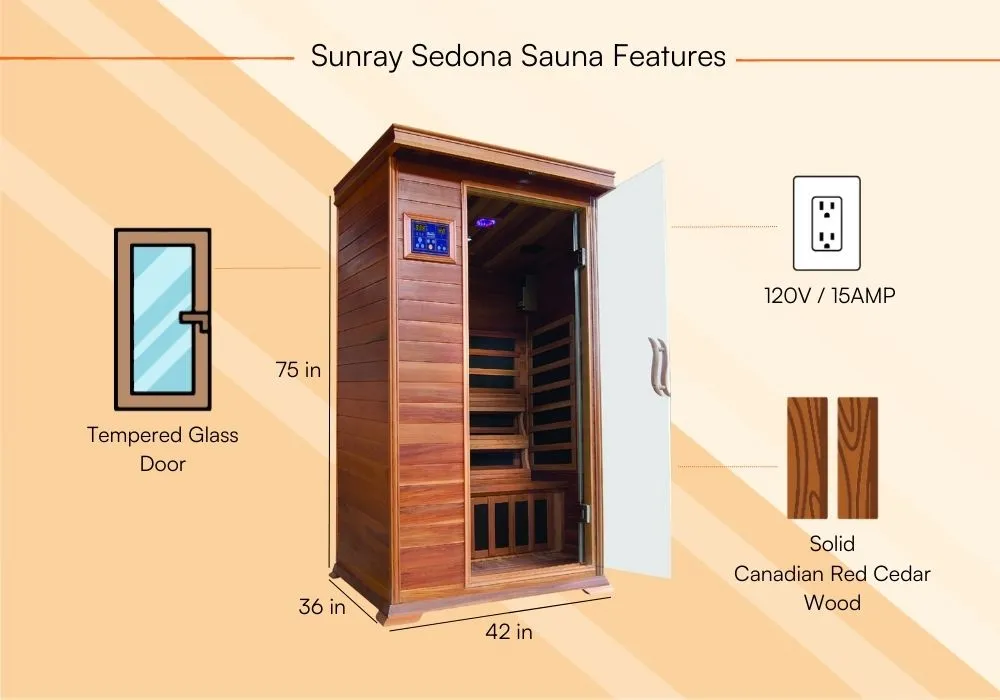

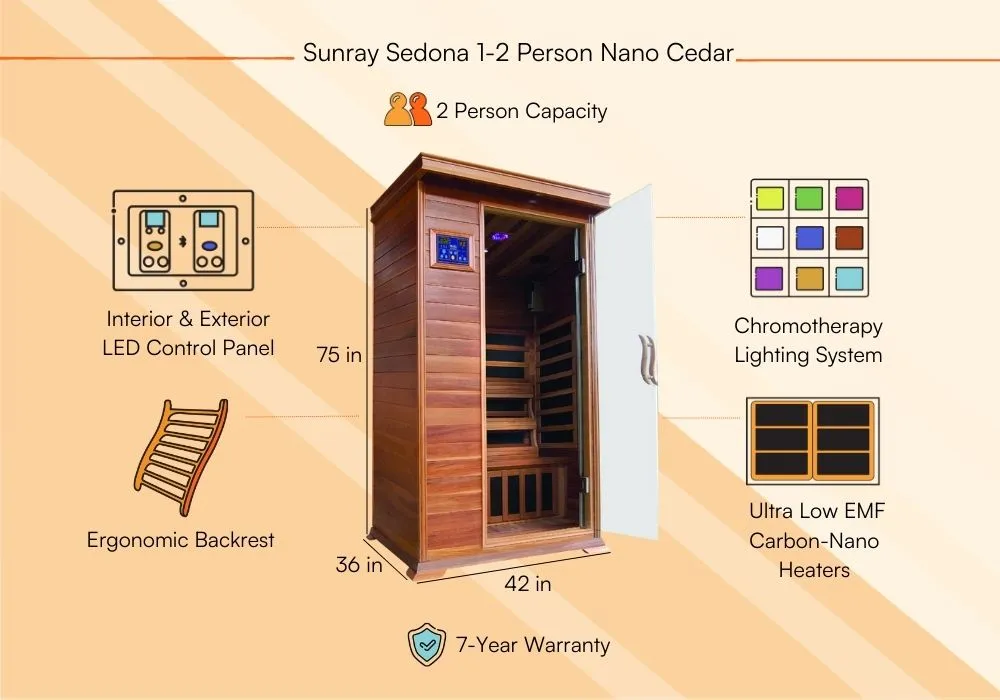

Sunray Sedona Specs at a Glance
| Spec | Sunray Sedona (HL100K) |
|---|---|
| Capacity | 1 person (Sunray lists 1-2) |
| Heaters | 5 carbon-nano far infrared heaters, 1,290 watts in total |
| Wood | Solid Canadian red cedar, tongue and groove |
| Glass | 10 mm tempered glass door |
| Exterior size | 36 in wide x 42 in deep x 75 in high |
| Interior size | 32 x 32 x 68 in |
| Controls | Interior and exterior keypads (temperature, time, lights, heater intensity) |
| Extras | Chromotherapy (7 colors), Bluetooth, built-in ergonomic backrest, recessed exterior lighting, cup holder, ceiling vent, oxygen ionizer |
| Maximum temperature | 140°F (product listing) |
| Power | 120V; data sheet shows 15A on page 1 and 20A dedicated on page 2 (see below) |
| Weight | About 200-210 lb (201 lb on the data sheet, 210 lb on the listing) |
| Warranty | 7 years structure, 1 year electronics, 1 year heaters |
Heating and Heat-Up Time
Five carbon-nano panels heat the cabin, and the keypad lets you set the heater intensity as well as the temperature and timer. At 1,290 watts it draws less power than most 2-person cabins, which suits a single-person space.
Sunray doesn't publish a heat-up time for the Sedona. As a guide, the owner's manuals for similar carbon-heater cabins from other makers give about 20 minutes to reach 100°F and 25-30 minutes to reach 115-120°F, starting from a room above 70°F. A small cabin like this may be a little quicker, and a cold basement will be slower. Most people sit at around 115-130°F.
EMF
Sunray markets its carbon-nano heaters for smooth, even heat, but the Sedona's data sheet doesn't give an EMF figure in milligauss. If low EMF is a priority, ask for the measured figure and the distance it was measured at before you buy, or choose a model with a published rating: Dynamic rates the Avila at 5-10 mG and the Avila Elite at 3-5 mG, measured 2 to 3 inches from the panels. Our guide to infrared sauna EMF explains what those numbers mean.
Size, Design and Placement
At about 36 by 42 inches, the Sedona fits a spare-room corner, a large walk-in closet or a home gym. The 32 x 32 inch interior is comfortable for one person; two people can fit, but shoulder to shoulder. Red cedar gives a warmer color and a light cedar scent compared with hemlock, and the solid wood floor and backrest are built in. There are no side windows, so the cabin feels enclosed apart from the glass door.
It's an indoor sauna. Put it on a dry, level floor with room for the door to swing and access to the outlet.
Electrical Requirements and Running Cost
The Sedona plugs into a 120V outlet, not 240V. Sunray's data sheet is inconsistent: the first page lists 120V, 15 amp, and the second lists 120V, 20 amp dedicated. The listing says 120V 15 amp. To be safe, plan on a dedicated circuit with nothing else on it, don't use an extension cord, and ask Sunray or us to confirm the amperage for your unit before an electrician sets it up.
Running cost is low. At the 1,290-watt maximum and a US average of about 18 cents per kWh (EIA, 2026), an hour at full power costs about 23 cents, and less once the cabin is up to temperature and the heaters cycle.
About the Oxygen Ionizer
Sunray describes the ionizer as cleaning and purifying the air in the cabin. The US EPA notes that ion generators don't remove gases or odors and can produce ozone, a lung irritant, as a byproduct. In a small closed cabin, we'd use it sparingly or leave it off, and keep the ceiling vent open.
Warranty and Care
Sunray covers the structure for 7 years and the electronics and heaters for 1 year. That's a long structural warranty, but a short one on the parts most likely to need attention, so register the sauna and keep your receipt. The Sedona data sheet has the full specs and drawings.
For care, wipe the bench and backrest with a damp cloth after sessions and keep the heaters dry and dust-free.
Pros and Cons
| Pros | Cons |
|---|---|
| Solid red cedar in a 36 x 42 inch footprint | Tight for two people (32 x 32 inch interior) |
| Keypads inside and out, with heater intensity control | No published EMF figure |
| Low power draw (1,290 W), about 23 cents an hour at full power | Data sheet lists both 15A and 20A dedicated; confirm before wiring |
| Built-in backrest, chromotherapy, Bluetooth, cup holder | Only 1 year on heaters and electronics |
| 7-year structural warranty | No side windows; ionizer can produce ozone |
Sunray Sedona vs Other Small Infrared Saunas
Prices checked in November 2026 and can change; see each product page for today's price.
| Sunray Sedona | Dynamic Avila | Dynamic Avila Elite | Sunray Sierra | |
|---|---|---|---|---|
| Price | $2,398 | $1,899 | $2,099 | $2,598 |
| Capacity | 1 (snug 2) | 1-2 | 1-2 | 2 |
| Wood | Red cedar | Hemlock | Hemlock | Red cedar |
| Heaters | 5 carbon-nano, 1,290 W | 7 carbon | 7 carbon, 1,800 W | 7 carbon-nano, 1,665 W |
| EMF (maker) | Not published | 5-10 mG | 3-5 mG | Not published |
| Exterior (W x D x H) | 36 x 42 x 75 in | 39 x 38 x 73 in | 39 x 38 x 73 in | 48 x 45 x 75 in |
| Controls | Inside and outside | Inside only | Inside only | Inside and outside |
| Power | 120V, 15A or 20A dedicated (confirm) | 120V/15A, dedicated outlet recommended | 120V/15A, dedicated outlet recommended | 120V/15A |
The Dynamic Avila is $499 less, gives two people a little more width and comes with a published EMF rating, but it's hemlock and has only an inside control panel. The Avila Elite adds ultra low EMF heaters for $200 more. The Sunray Sierra is the step up if you want red cedar with real room for two; our Sunray Sierra review covers it in detail. For more compact options, browse our 1-person saunas and the full Sunray range.
Verdict
Choose the Sunray Sedona if you want a solid red cedar cabin for one in a small space, with controls inside and out and a low running cost.
Choose the Dynamic Avila or Avila Elite if you want a lower price, a published EMF rating or a bit more width for two.
Choose the Sunray Sierra if you want red cedar and two people will use it regularly.
